Custom 8*2 Character LCD Modules ST7066 Blue Monochrome Characters LCDs With Multiple Sizes
1. Definition
A Character LCD (Liquid Crystal Display) module is a display device designed to show alphanumeric characters, symbols, and simple icons. It uses predefined character patterns stored in its memory to form text-based information, typically arranged in rows and columns. Unlike graphic LCDs, character LCDs focus on presenting text rather than complex images or graphics.
2.Product Features
1.1 High - Quality Design
This is a 16PIN product, providing stable performance. VATN displays are also available, featuring a wide viewing angle and high contrast, ideal for diverse applications.
1.2 Diverse Options
Available in multiple sizes (8x2 LCD, 16x1LCD, 16x2 LCD, 16x4LCD, 20x2 LCD, 20x4LCD, 40x4LCD) with a wide range of backlight colors including white, blue, yellow, red, green, and amber. The 8x2 model comes in blue and yellow - green, with red, amber, and red backlighting for choices.
1.3 Standard Form Factor
The 8x2 LCD model has a form factor of 58 x 32 mm, making it suitable for various design requirements.
1.4 Versatile Interfaces
Offered with 6800, SPI, and I2C interfaces to meet different customer needs, ensuring easy integration with various systems.
3. Advantages
- Cost-Effective: More affordable compared to graphic LCDs, making them a budget-friendly choice for applications where simple text display suffices.
- Ease of Use: Simple programming and operation; developers can quickly implement text display functions without complex graphics processing.
- Reliability: Long lifespan and stable performance, with resistance to shock and vibration, reducing maintenance needs.
- Widely Available: A mature technology with numerous manufacturers, ensuring easy access to components and technical support.
4. Product technical parameters
| Keywords: | 1.5inch Dot matrix LCD with monochrome characters |
| Resolution: | 8×2 Pixels |
| LCD Interface: | emulator |
| LCD Size: | 58.0×32.0×13.5mm |
| Visual Area: | 38.0×16.0mm |
| Control driver: | ST7066 |
| Surface Luminance: | 100cd/m2 |
| Operating Temp: | -20℃～＋70℃ |
| Storage Temp: | -30℃～＋80℃ |
| Display Type: | blue membrane/STN |
| Driving voltage: | 5.0V/3.3V |
| LED Lifetime: | 40,000 hours |
| Backlight: | LED white light |
| Display Color: | blue |
| Certificate: | GB/T19001-2016/IS09001:2015 |
5. Product in details:

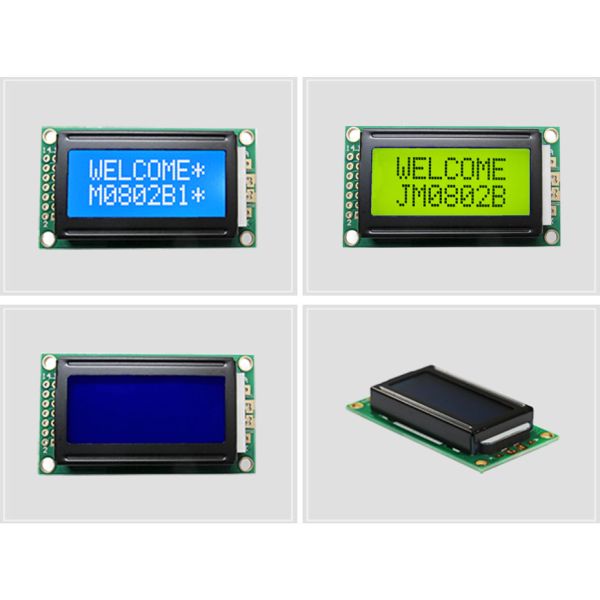

PS: This Character LCD Modules is available for order. we have different specifications parameters of the 8*2 LCD,If you need other sizes or customized products, please feel free to Contact Us and provide relevant drawings. We accept customized services and OEM processing.
6. Application fields
Here are the recommended application areas for the Character LCD Modules:
- Consumer Electronics: Used in microwave ovens, washing machines, and digital clocks to display settings, status messages, and time.
- Industrial Equipment: Ideal for showing operational parameters, error codes, and system status on control panels of machinery, temperature controllers, and power meters.
- Medical Devices: Applied in simple medical instruments like blood pressure monitors and glucose meters to display measurement results clearly.
- Educational Tools: Popular in learning kits and student projects for teaching basic microcontroller interfacing and display principles.
- Point-of-Sale (POS) Terminals: Displays transaction details, item names, and prices in small-scale POS systems.
Why Choose JUNXian?
Founded in 2005, Junxian is a leading LCD display manufacturer. Our team of seasoned engineers and professionals offers a comprehensive range of LCD products. We also provide customized solutions for LCDs and touchscreens tailored to your unique needs.
1. Direct source factory, professional team, and competitive prices
Our own factory ensures both the product quality and production speed,We can provide quick prototyping to speed up your product development process. Our technical support team is always ready to assist you, ensuring a smooth experience from design to implementation.
2. Custom LCD Displays & CTP-Integrated Modules With 20 years of manufacturing excellence, we specialize in crafting custom LCD displays—ranging from 0.96" to 15.6"—including models with fully integrated capacitive touch panels (CTP). Our professional capabilities enable end-to-end customization of critical components: FPC cables, backlight materials, PCBA board and display mode,ect;ensuring seamless alignment with your technical specifications.
3.Stringent Quality Control
Robust quality control processes at every stage—from raw materials to final inspection—guarantee superior performance and durability.
4. Certificates and Honors
We hold the GB/T19001 - 2016/IS09001:2015 certificate, ensuring that the quality of every product exceeds industry standards.
5. Rapid Delivery & Global Service
Streamlined workflows and flexible production enable quick order turnaround, supported by a worldwide logistics network.
With 20 years of expertise, we're not just suppliers! JUN Xian is your partners in innovation.
Contact us now to get custom LCD solutions, quick samples, and expert support, and let’s bring your vision to life!
